真空管道磁浮交通车体热压载荷分布特征及其非定常特性

胡啸 马天昊 王潇飞 邓自刚 张继旺 张卫华

胡啸, 马天昊, 王潇飞, 等. 真空管道磁浮交通车体热压载荷分布特征及其非定常特性[J]. 实验流体力学, 2023, 37(1): 9-28 doi: 10.11729/syltlx20220084
引用本文: 胡啸, 马天昊, 王潇飞, 等. 真空管道磁浮交通车体热压载荷分布特征及其非定常特性[J]. 实验流体力学, 2023, 37(1): 9-28 doi: 10.11729/syltlx20220084
HU X, MA T H, WANG X F, et al. Distribution and unsteady characteristics of the temperature and pressure loads acting on the car-body in evacuated tube maglev transport[J]. Journal of Experiments in Fluid Mechanics, 2023, 37(1): 9-28 doi: 10.11729/syltlx20220084
Citation: HU X, MA T H, WANG X F, et al. Distribution and unsteady characteristics of the temperature and pressure loads acting on the car-body in evacuated tube maglev transport[J]. Journal of Experiments in Fluid Mechanics, 2023, 37(1): 9-28 doi: 10.11729/syltlx20220084

真空管道磁浮交通车体热压载荷分布特征及其非定常特性

doi: 10.11729/syltlx20220084
基金项目: 国家自然科学基金(52022086);四川省科技厅创新研究团队资助项目 (22CXTD0070)
详细信息
    作者简介:

    胡啸:(1995—),男,安徽滁州人,博士研究生。研究方向:轨道交通气动效应及其控制。通信地址:四川省成都市金牛区二环路北一段111号西南交通大学九里校区牵引动力国家重点实验室(610031)。E-mail:hu@my.swjtu.edu.cn

    通讯作者:

    E-mail:deng@swjtu.cn

  • 中图分类号: U171;TB79

Distribution and unsteady characteristics of the temperature and pressure loads acting on the car-body in evacuated tube maglev transport

  • 摘要: 基于SST $k-\omega$湍流模型和IDDES方法,采用三维数值模型对800 km/h的真空管道磁浮交通系统在雍塞状态(阻塞比为0.3和0.2)和非雍塞状态(阻塞比为0.1)下进行瞬态模拟,得到列车车体热压载荷时均分布特征及其波动特性,并利用跨声速风洞凸块试验数据验证了数值方法的准确性。基于本征正交分解提取流场重要相干结构,识别列车表面载荷非定常较强区域,揭示其时空演化规律。研究结果表明:列车上表面载荷分布特征与拉瓦尔喷管相似,雍塞/非雍塞状态下载荷分布差异主要位于扩张段;列车下表面载荷分布因悬浮架腔体的截面突变而变得复杂,气流突入到第一个悬浮架腔体形成局部滞止点,造成车体压力大幅度振荡,同时热量在列车底部聚集,尾车下洗气流和上洗气流相互作用差异导致了雍塞/非雍塞状态下温度峰值的位置不同;列车表面压力非定常较强区域主要位于底部悬浮架处,且存在14 Hz的特征频率,雍塞状态下尾车激波处也是一个非定常源;中间车、尾车温度载荷一阶模态体现了热量累积过程。

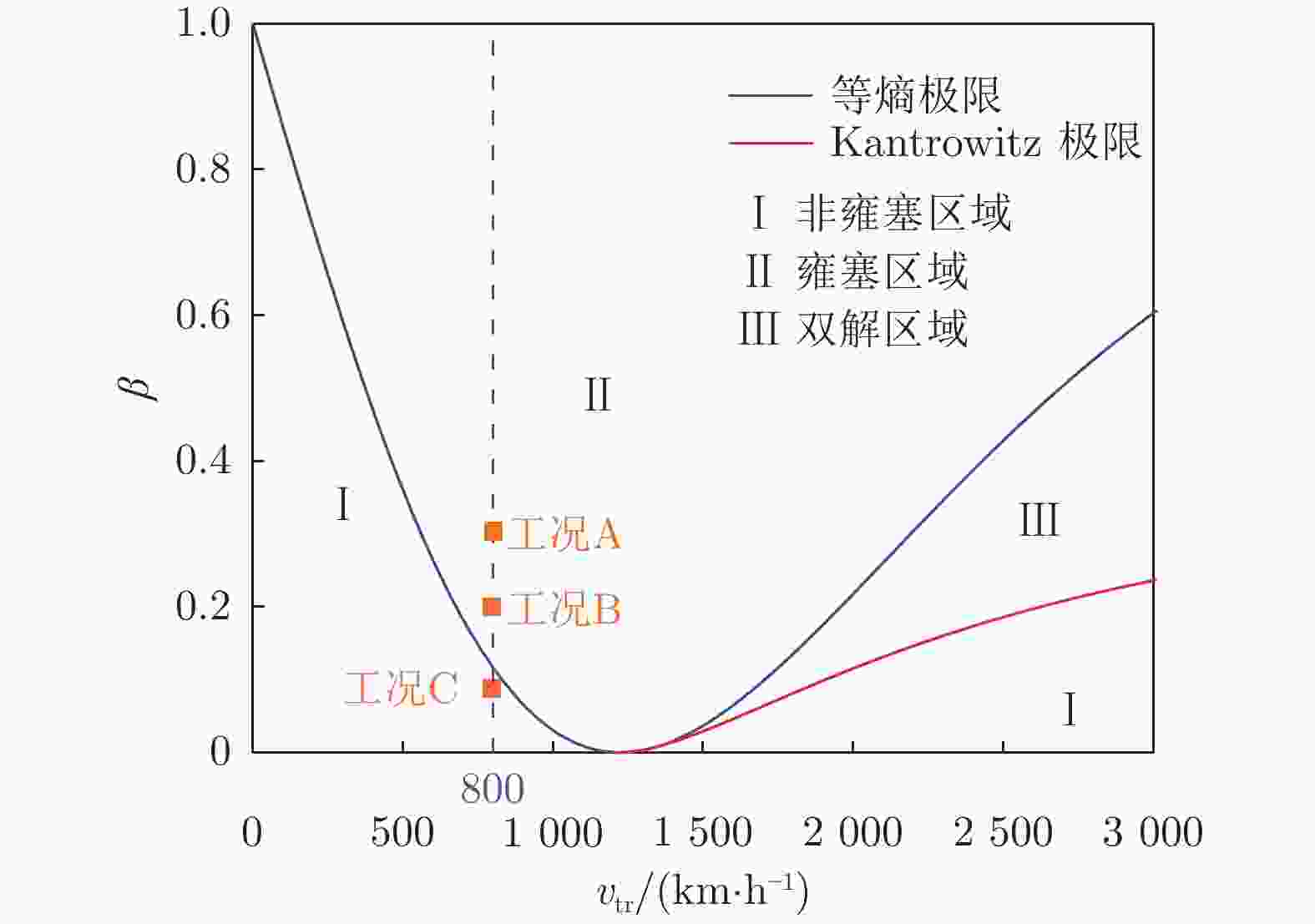

  • 图  1  阻塞比与列车速度的临界关系

    Figure  1.  The critical relationship between blockage ratio and train speed

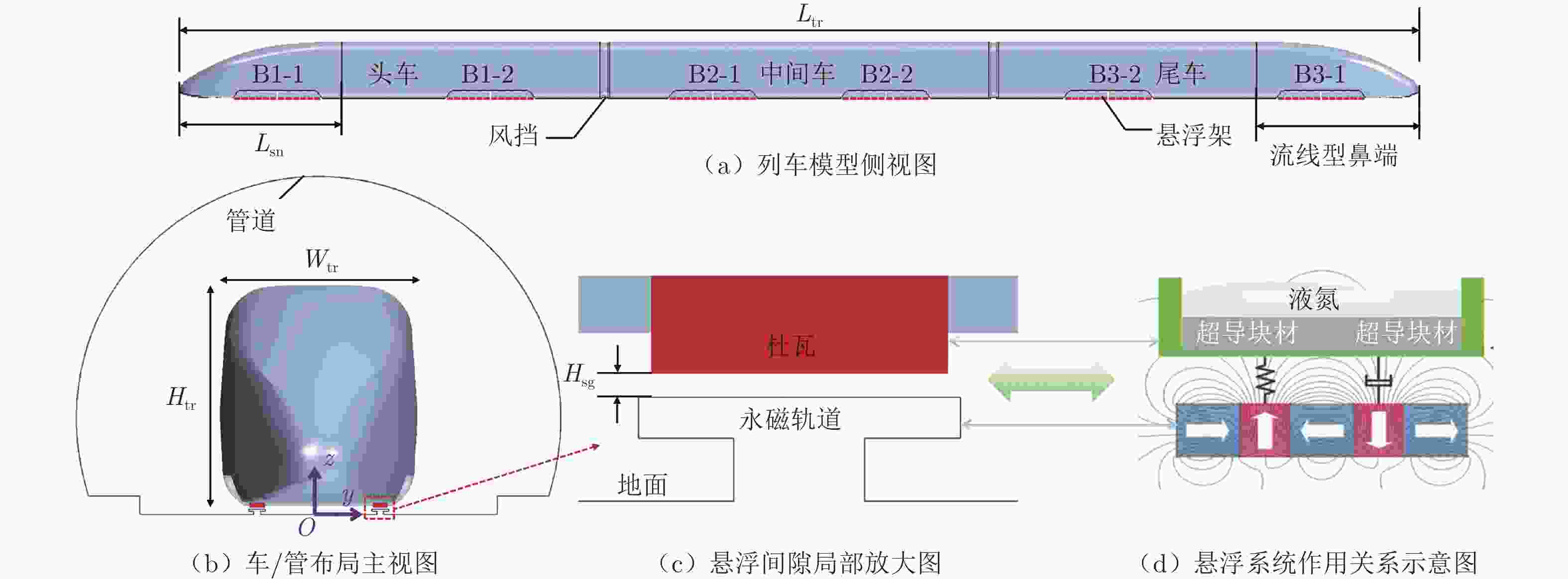

    图  2  真空管道磁浮交通系统几何模型

    Figure  2.  Geometric model of the evacuated tube maglev transportation system

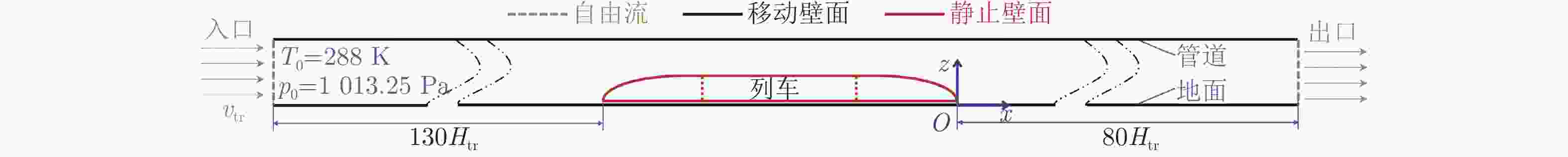

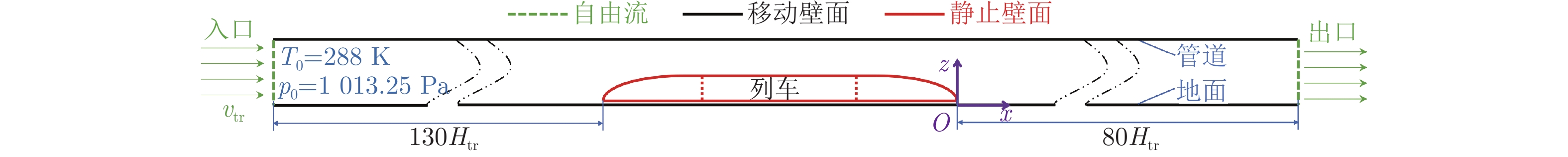

    图  3  计算区域与边界条件示意图

    Figure  3.  Schematic diagram of the computational domain and boundary conditions

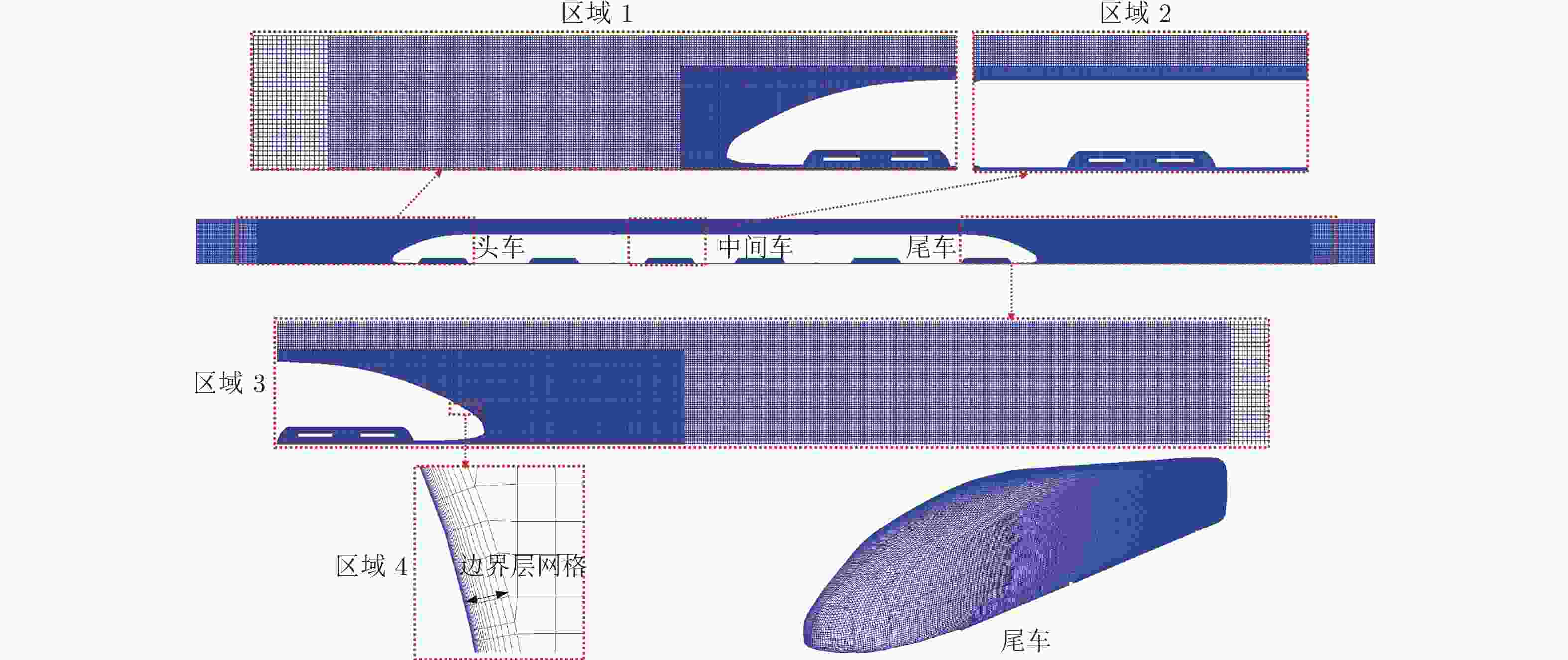

    图  4  计算网格加密方案

    Figure  4.  Refinement scheme of the calculation grid

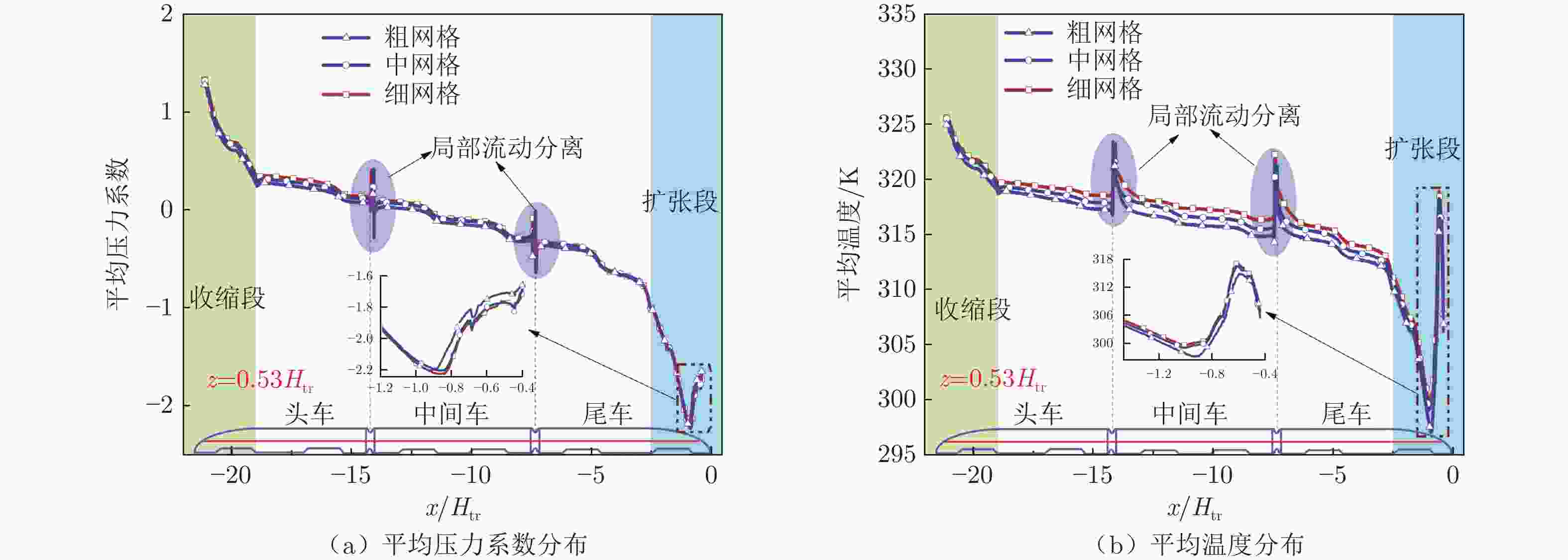

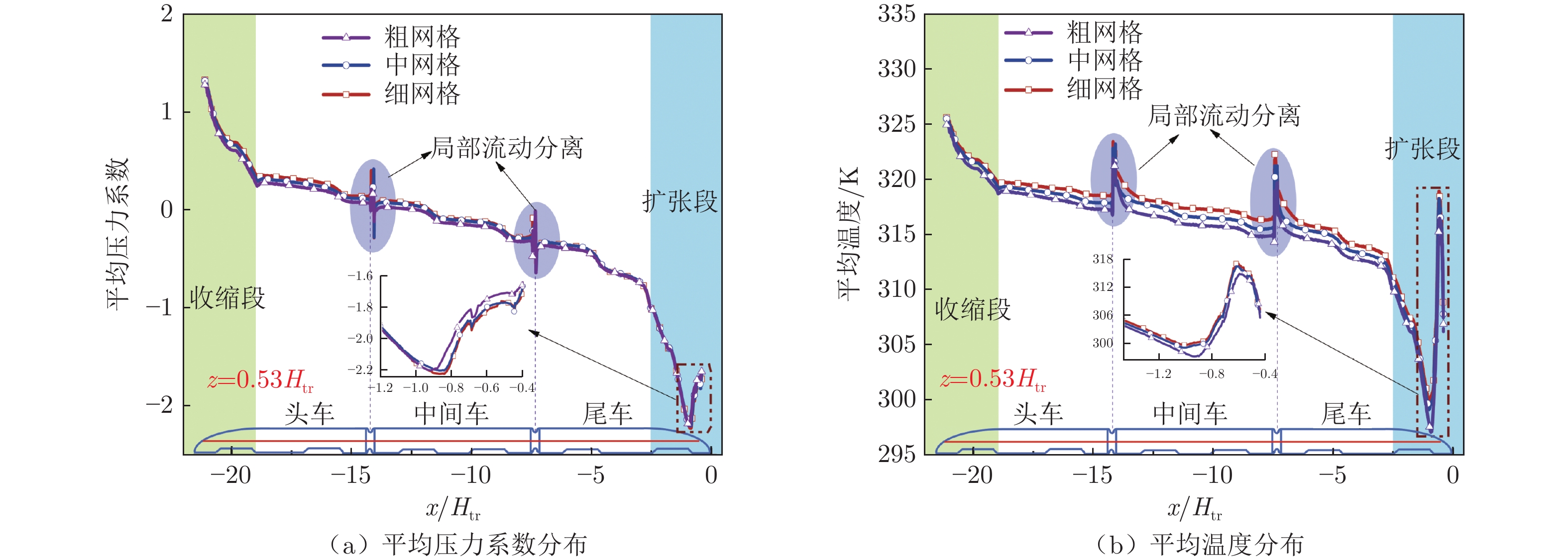

    图  5  不同网格密度对列车侧面(z=0.53Htr)平均热压载荷的影响

    Figure  5.  Effect of different grid densities on the time-averaged temperature and pressure load on the side of the train (z=0.53Htr)

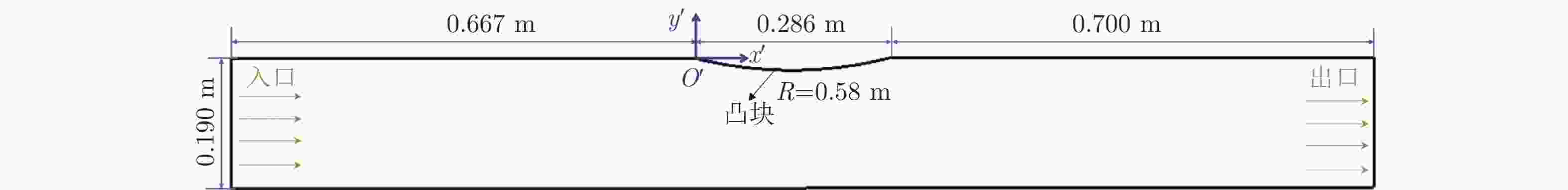

    图  6  跨声速风洞试验段模型设置示意图

    Figure  6.  Schematic drawing of model setup in transonic wind tunnel test section

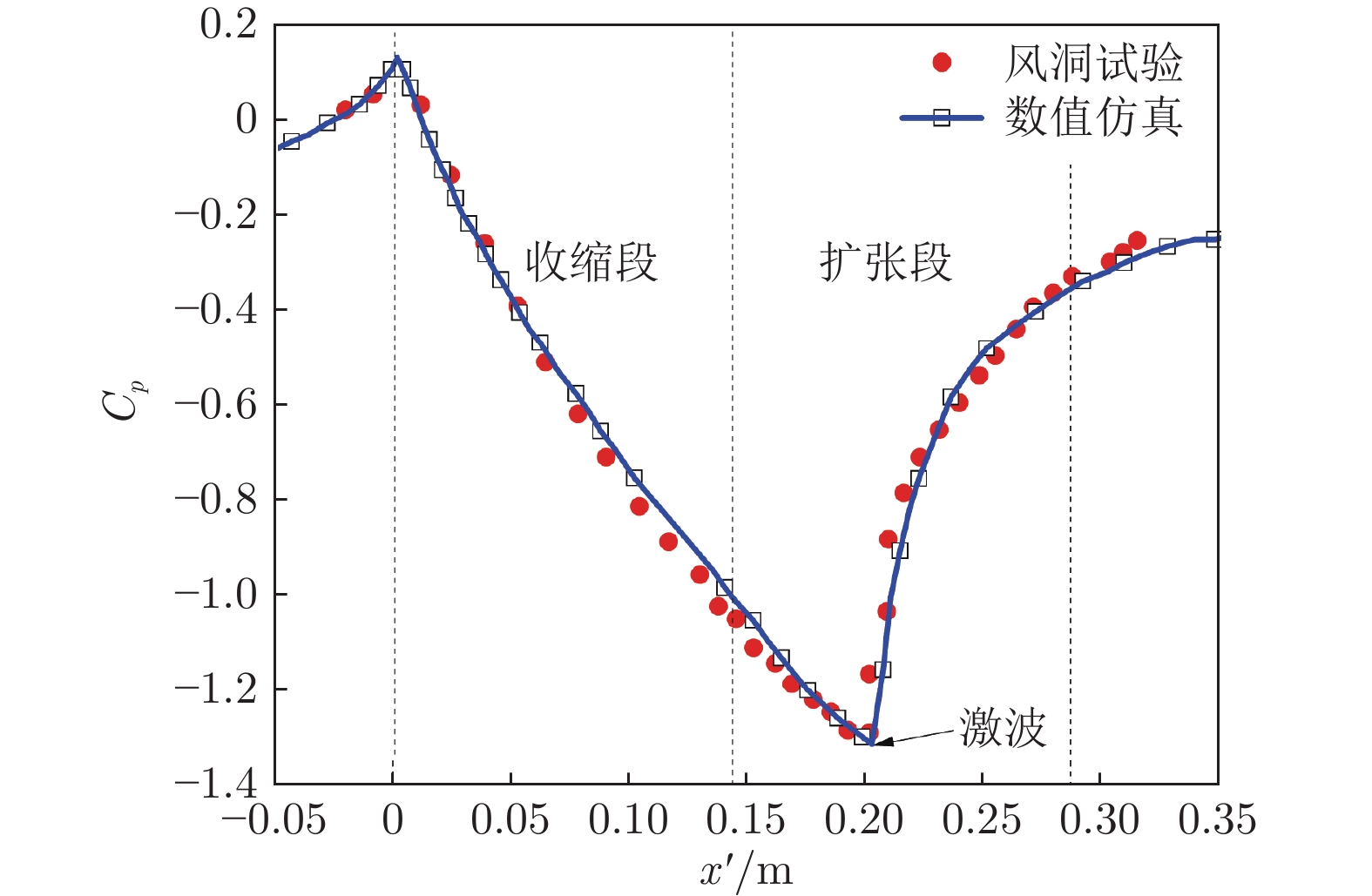

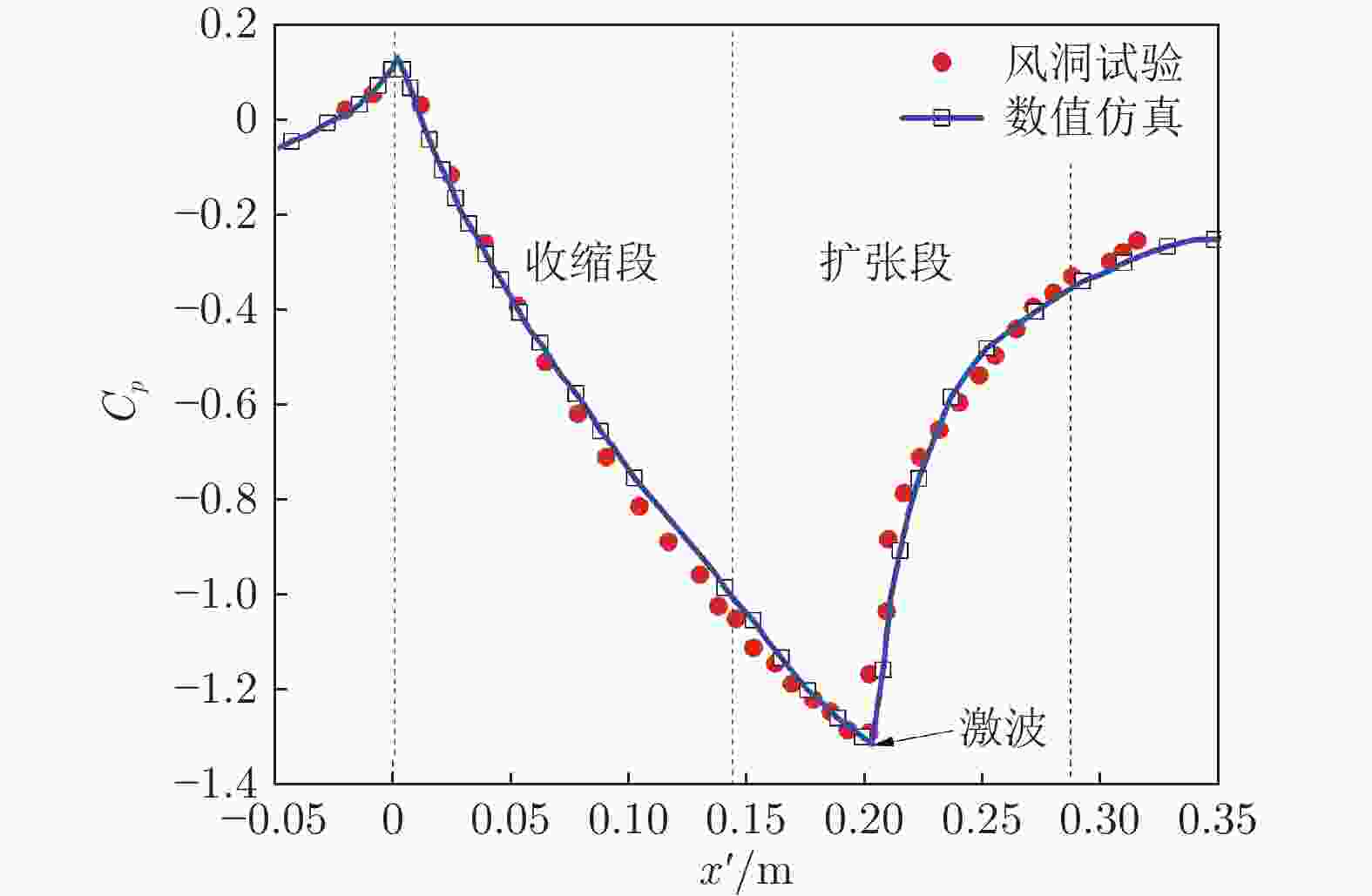

    图  7  上表面压力系数分布对比

    Figure  7.  Comparison of upper surface pressure coefficient distribution

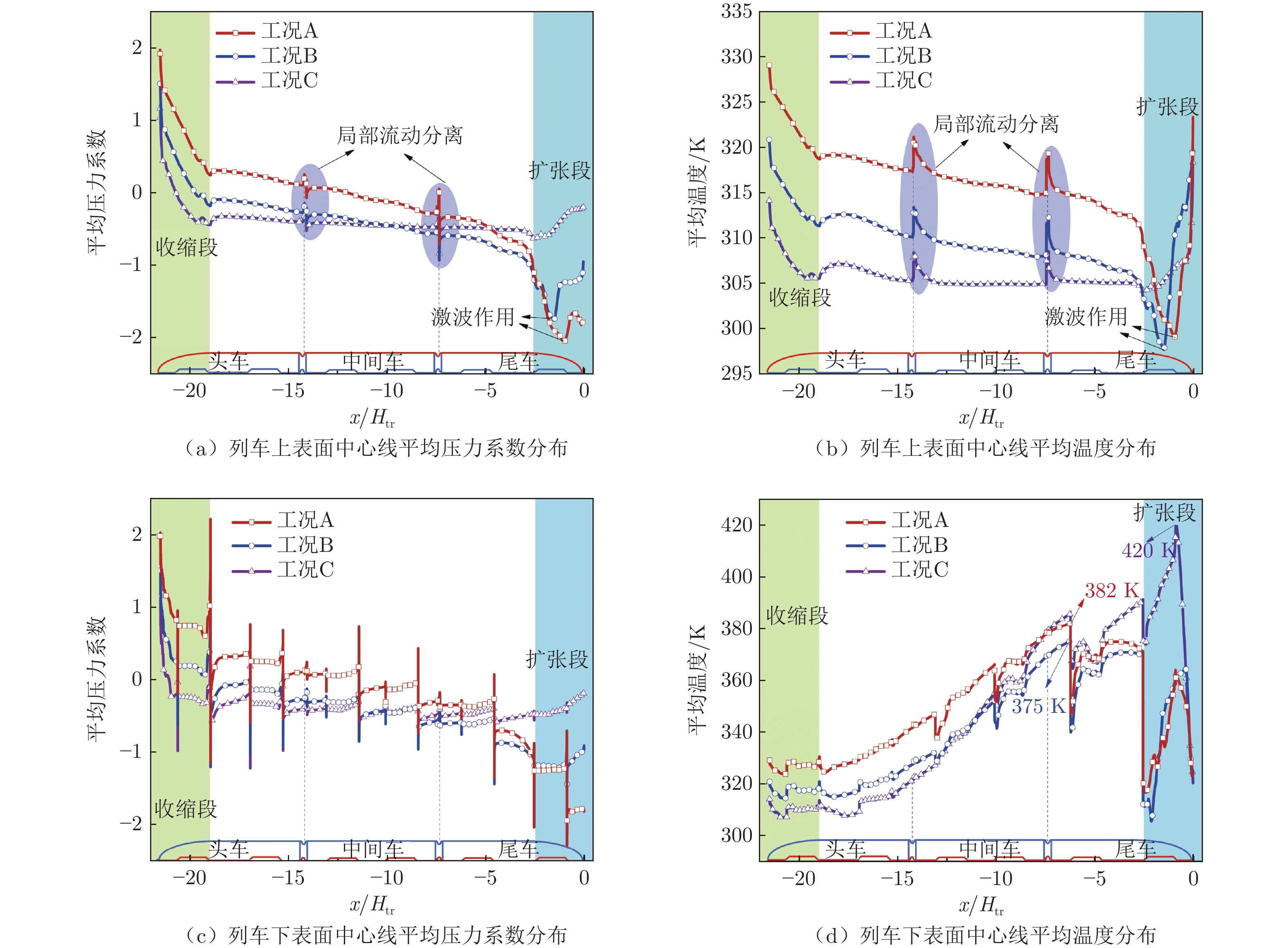

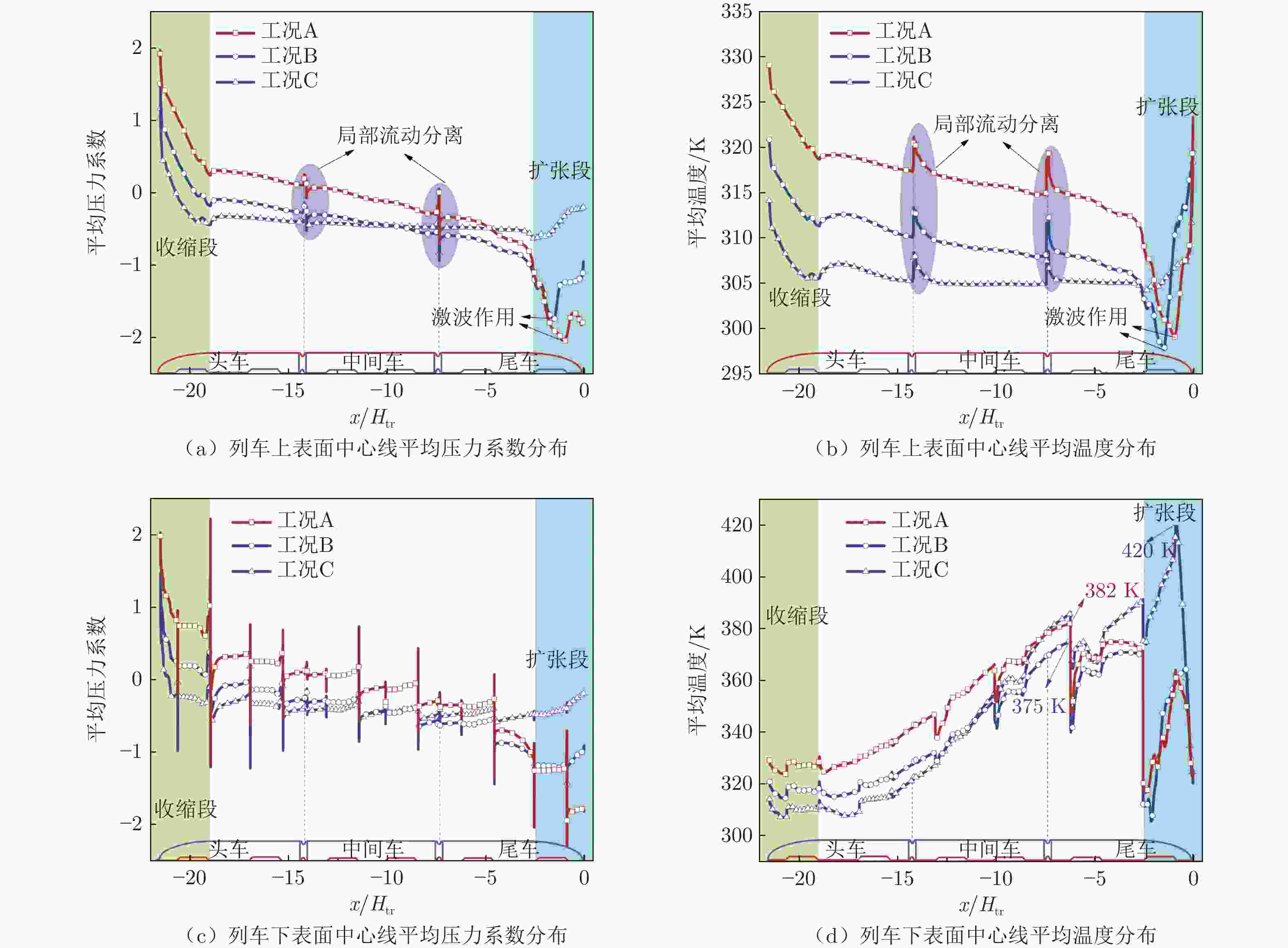

    图  8  不同流动状态下列车表面热压载荷时均分布对比

    Figure  8.  Comparison of the time-averaged distribution of train surface temperature and pressure load under different flow conditions

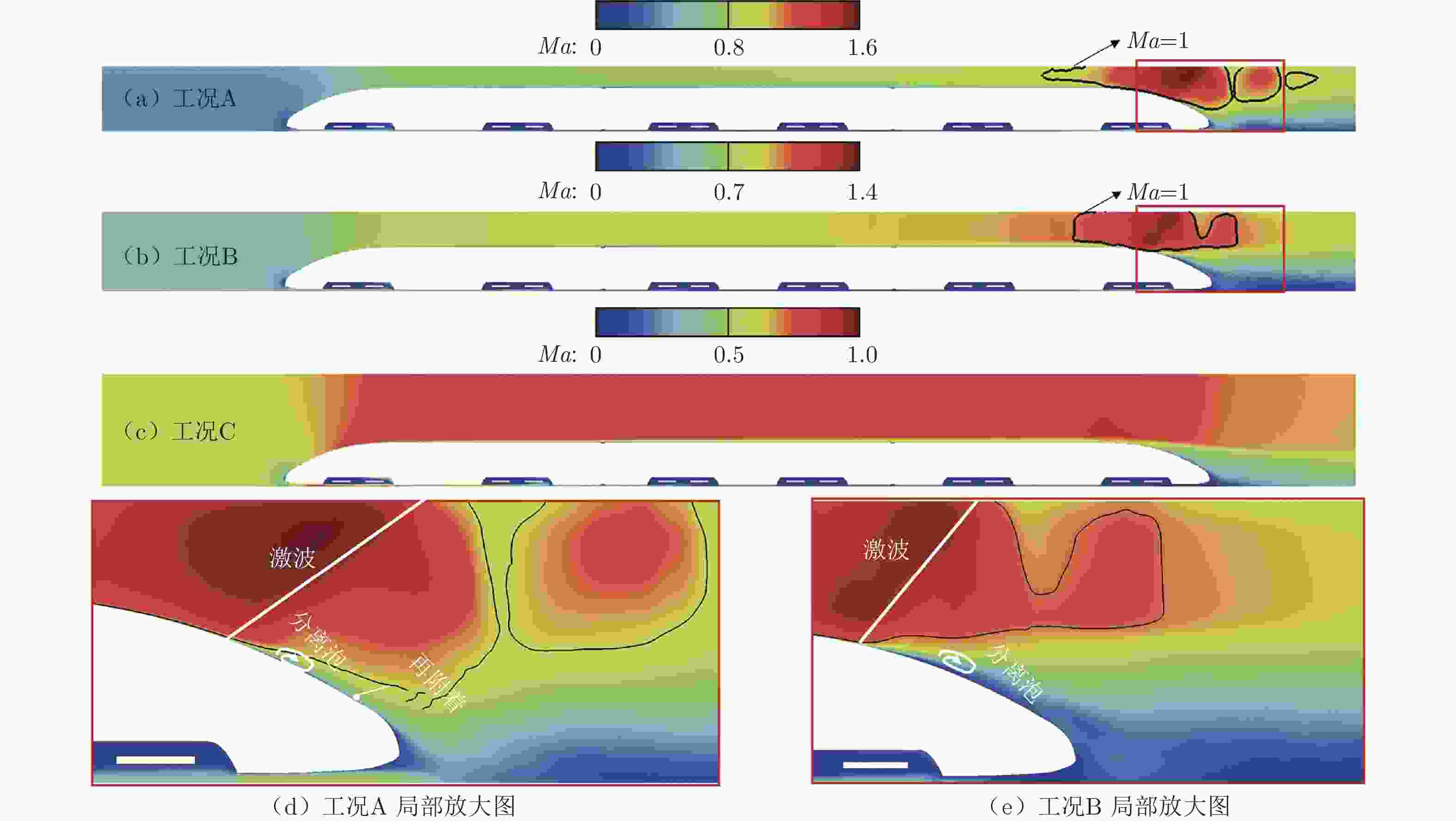

    图  9  y=0平面时均马赫数分布

    Figure  9.  Mean Mach number distribution projected on a plane at y=0

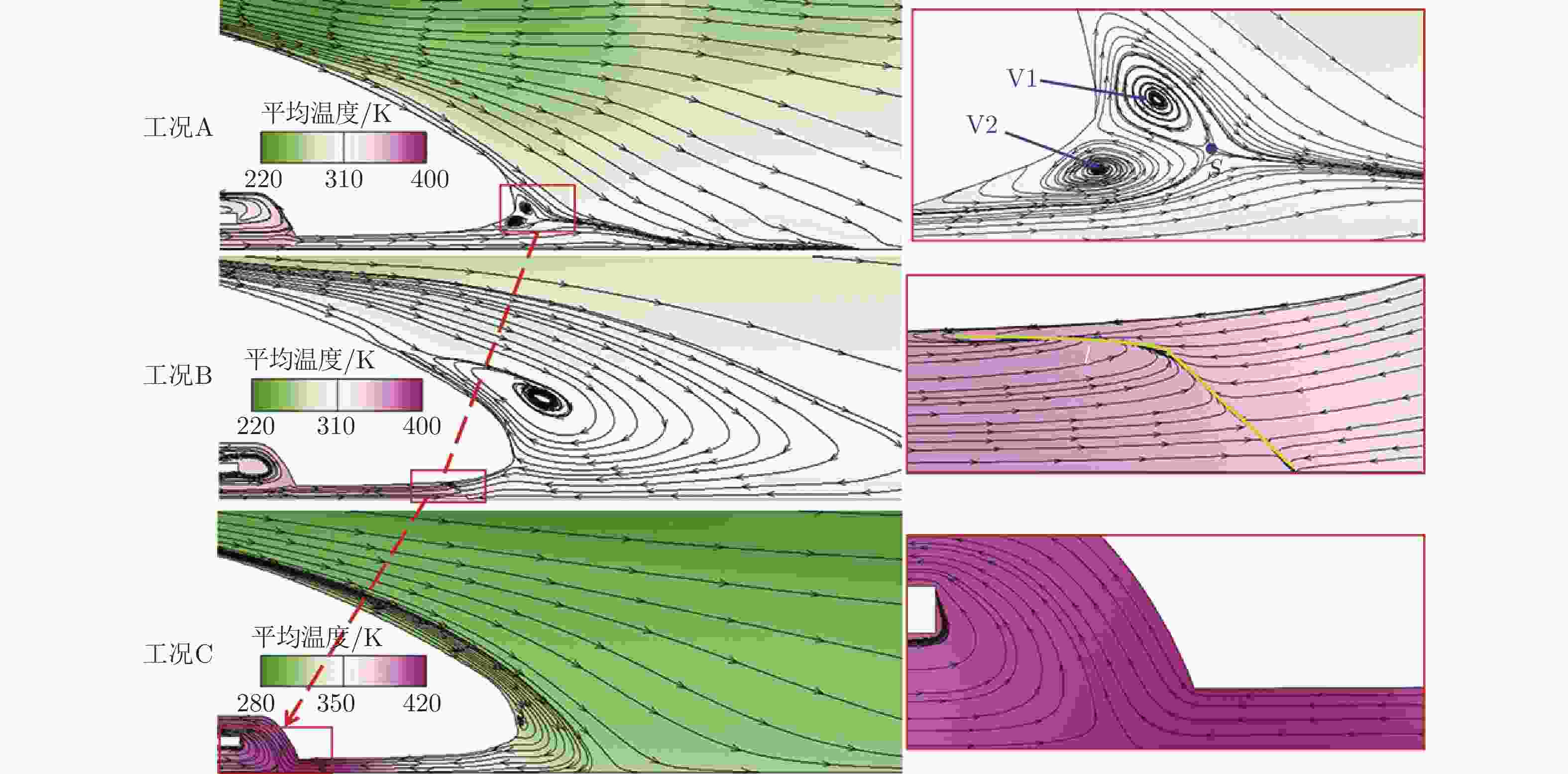

    图  10  y=0平面时均流线与温度分布

    Figure  10.  Mean flow velocity streamlines projected on a plane at y=0 colored by temperature

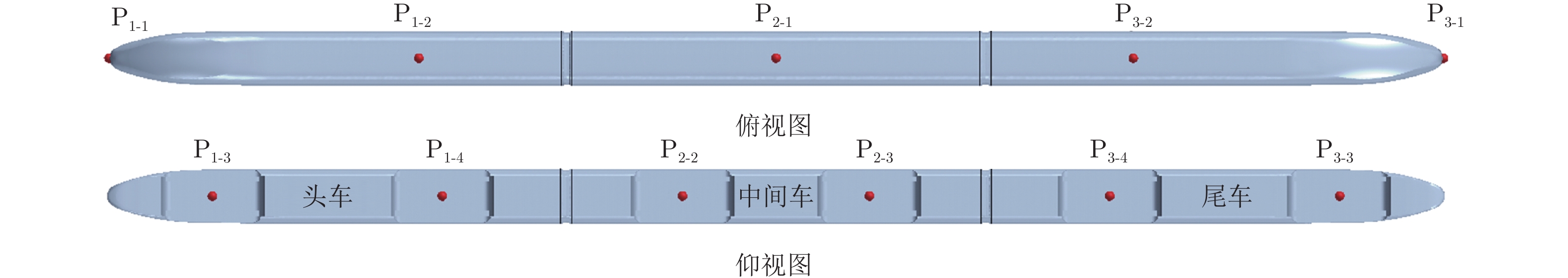

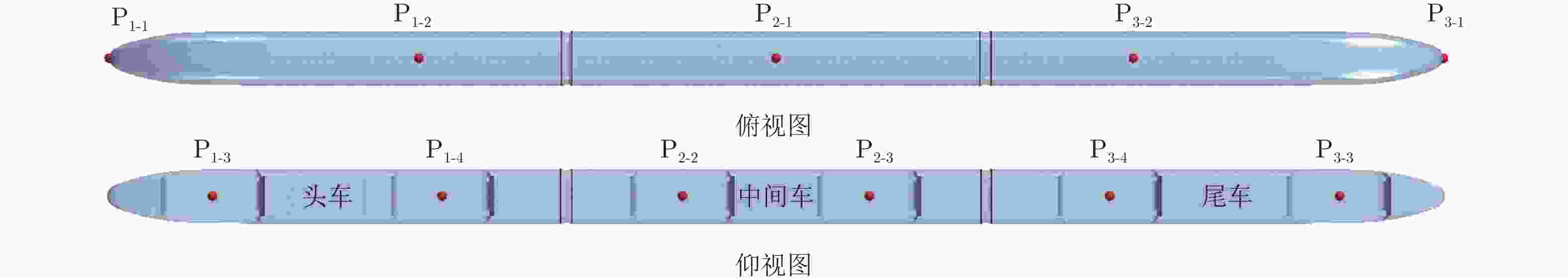

    图  11  列车上下表面监控点分布

    Figure  11.  Distribution of monitoring points on the top and bottom surfaces of the train

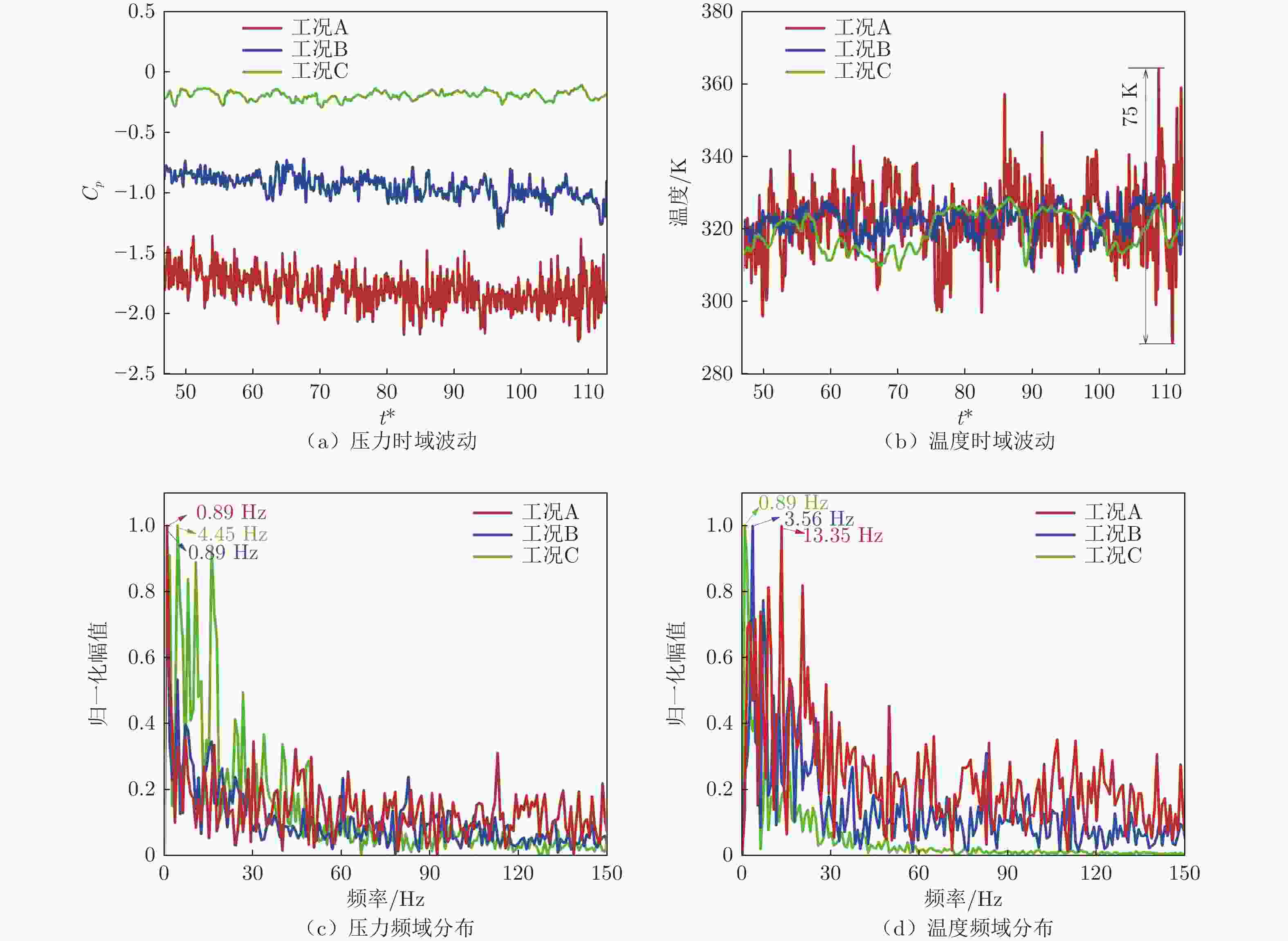

    图  12  尾车鼻尖监控点P3-1瞬时载荷波动和频域分布

    Figure  12.  Transient load fluctuations and frequency domain distribution of monitoring point P3-1 at the nose tip of the tail car

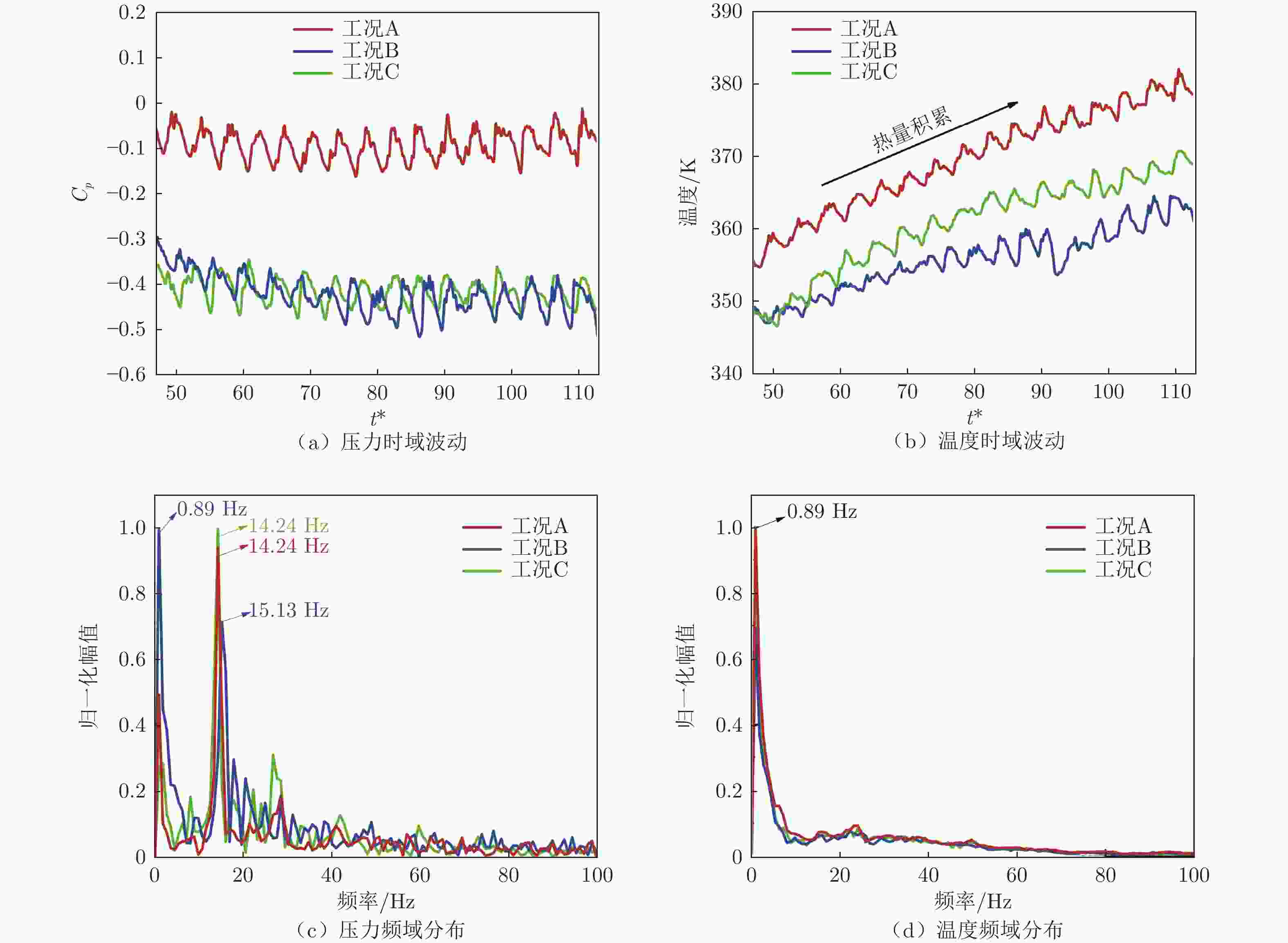

    图  13  中间车悬浮架腔内监控点P2-3瞬时载荷波动和频域分布

    Figure  13.  Transient load fluctuations and frequency domain distribution of monitoring point P2-3 at the bogie cavity of the middle car

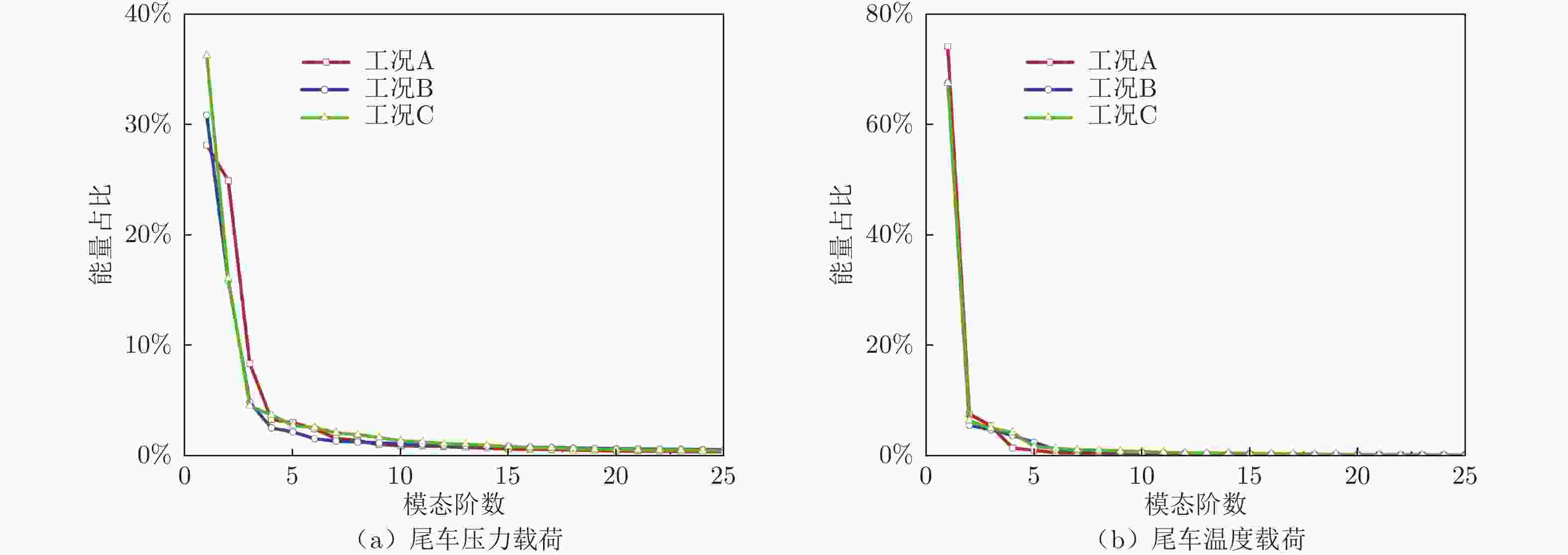

    图  14  尾车热压载荷各阶模态能量占比对比

    Figure  14.  Comparison of the energy contribution of each mode in the pressure and temperature loads of the tail car

    图  15  头车压力载荷前两阶POD模态

    Figure  15.  The first two POD modes of head car pressure load

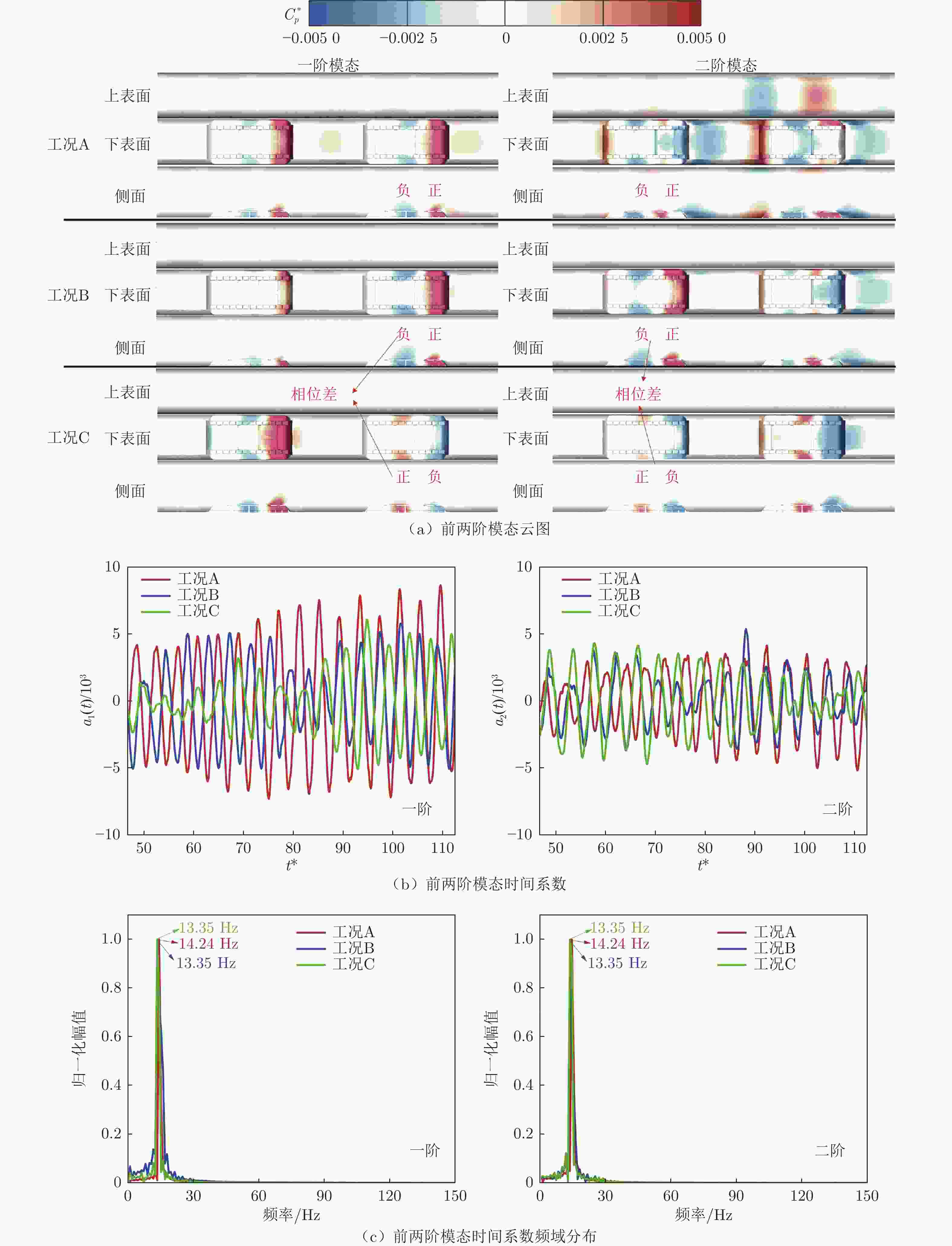

    图  16  中间车压力载荷前两阶POD模态

    Figure  16.  The first two POD modes of middle car pressure load

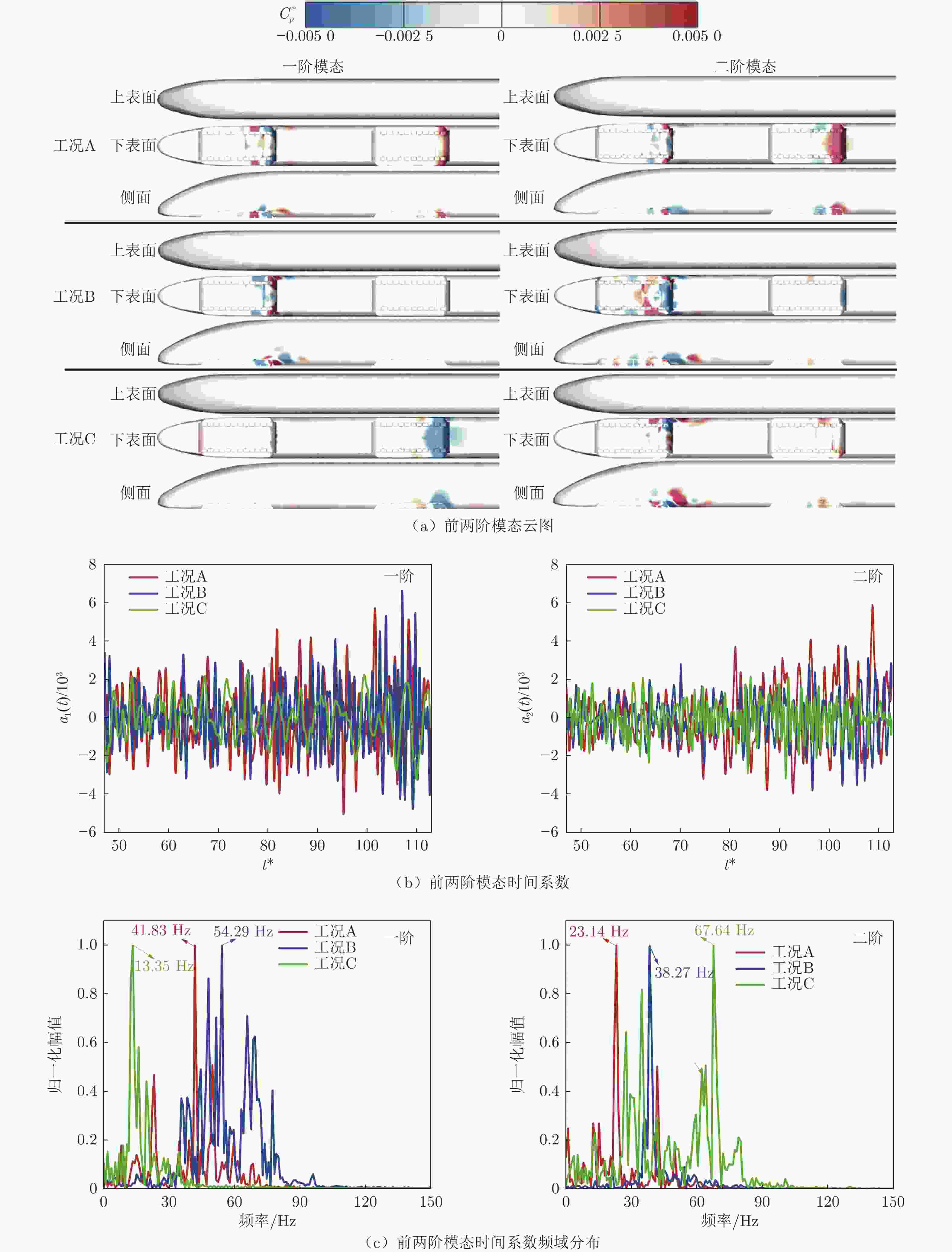

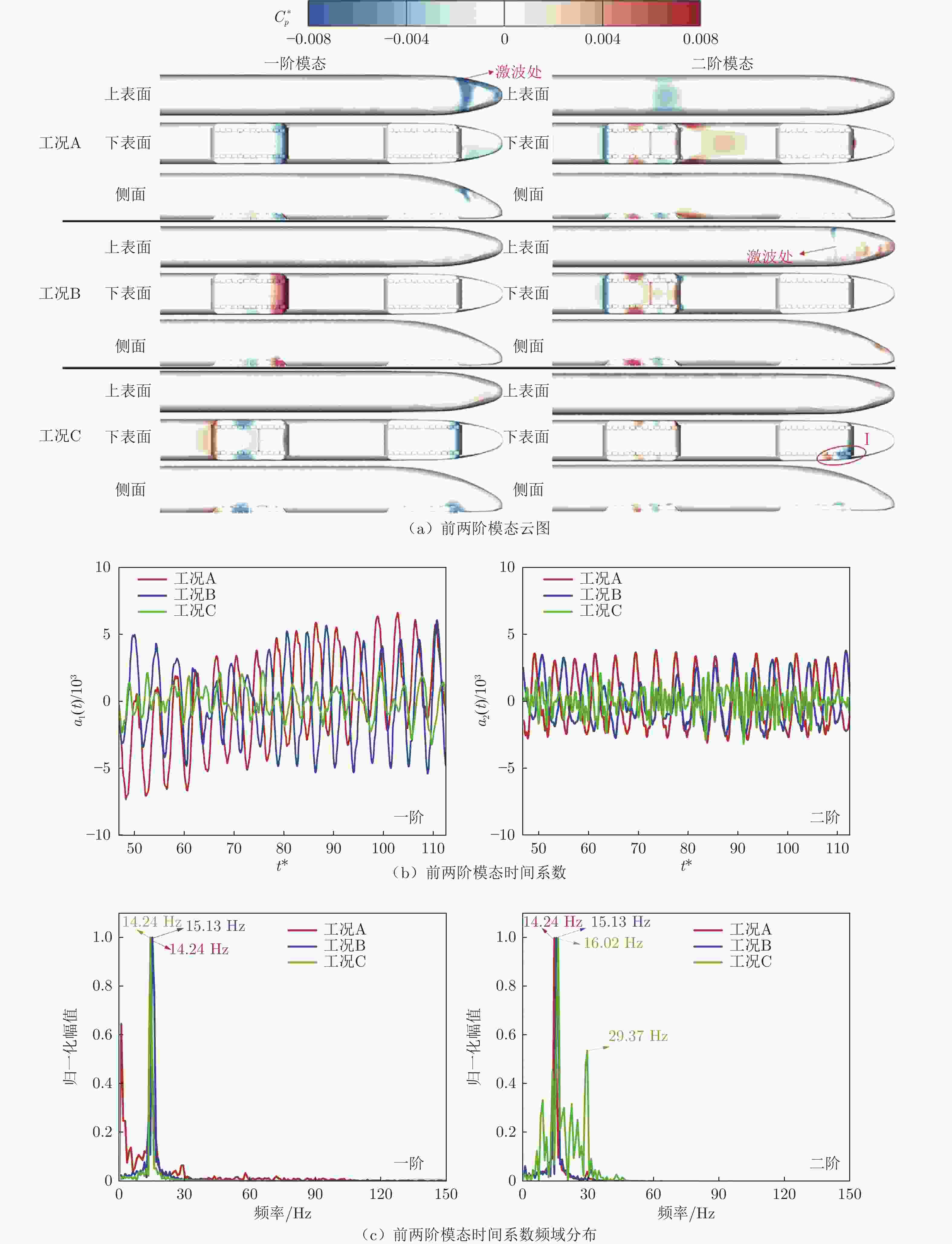

    图  17  尾车压力载荷前两阶POD模态

    Figure  17.  The first two POD modes of tail car pressure load

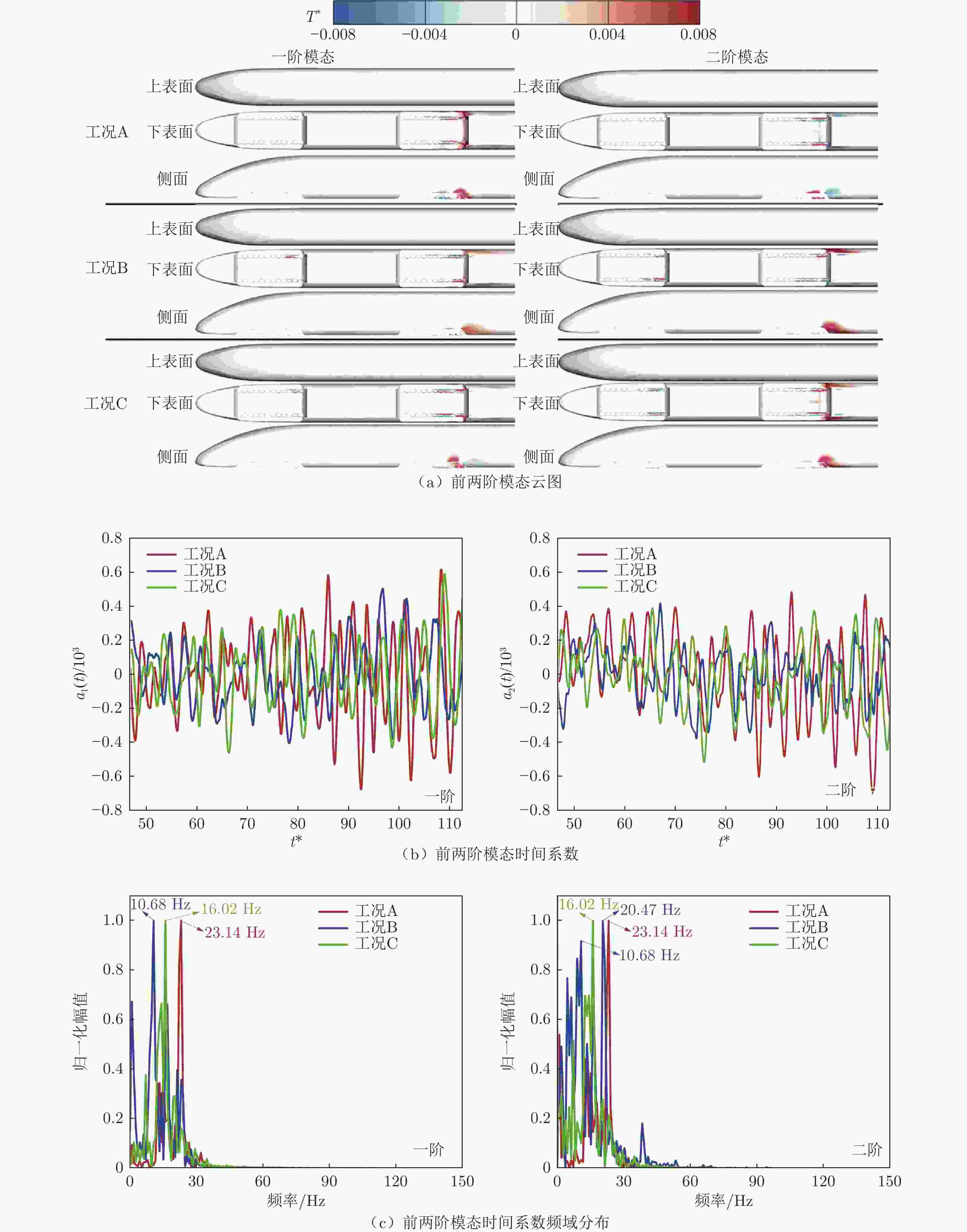

    图  18  头车温度载荷前两阶POD模态

    Figure  18.  The first two POD modes of head car temperature load

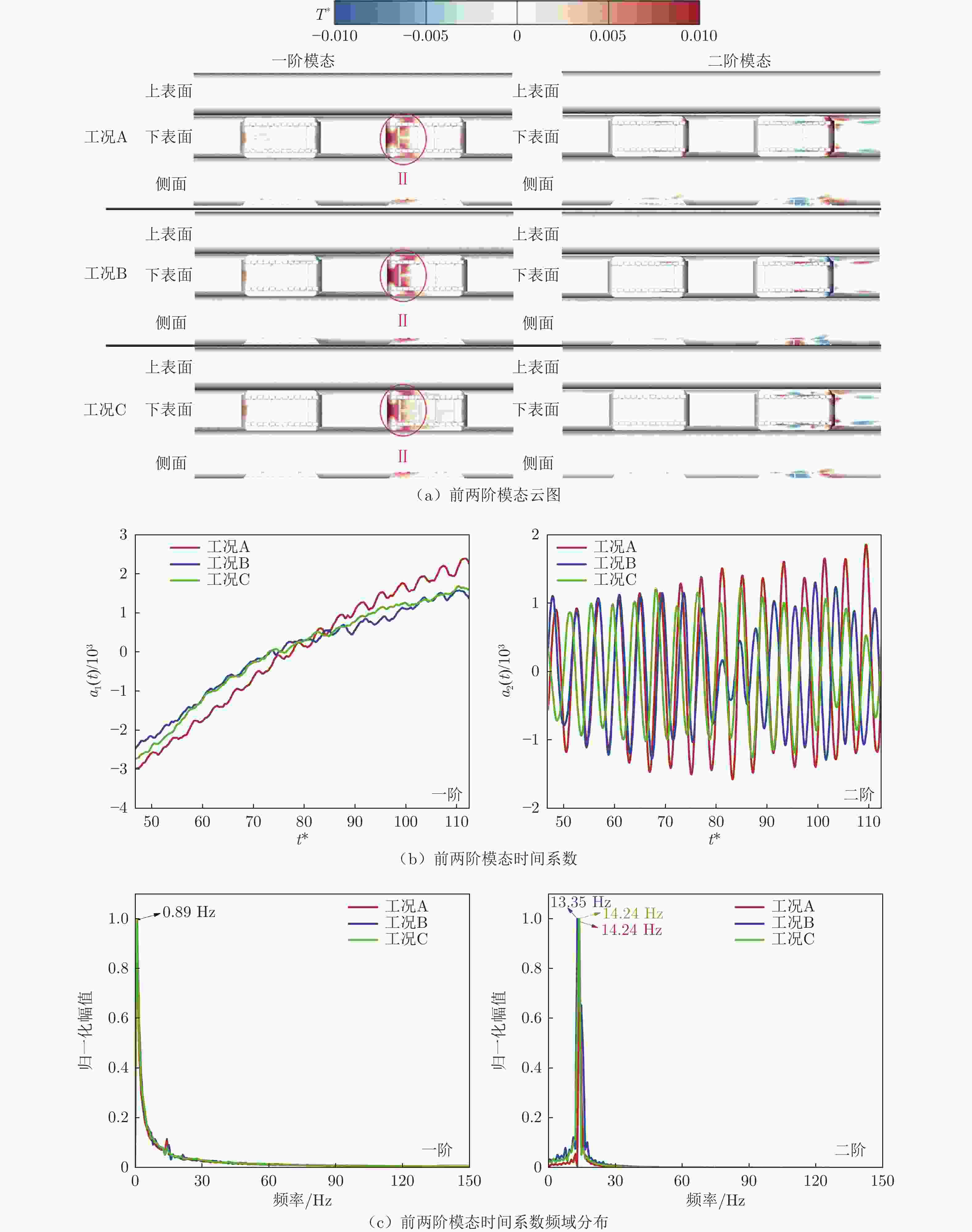

    图  19  中间车温度载荷前两阶POD模态

    Figure  19.  The first two POD modes of middle car temperature load

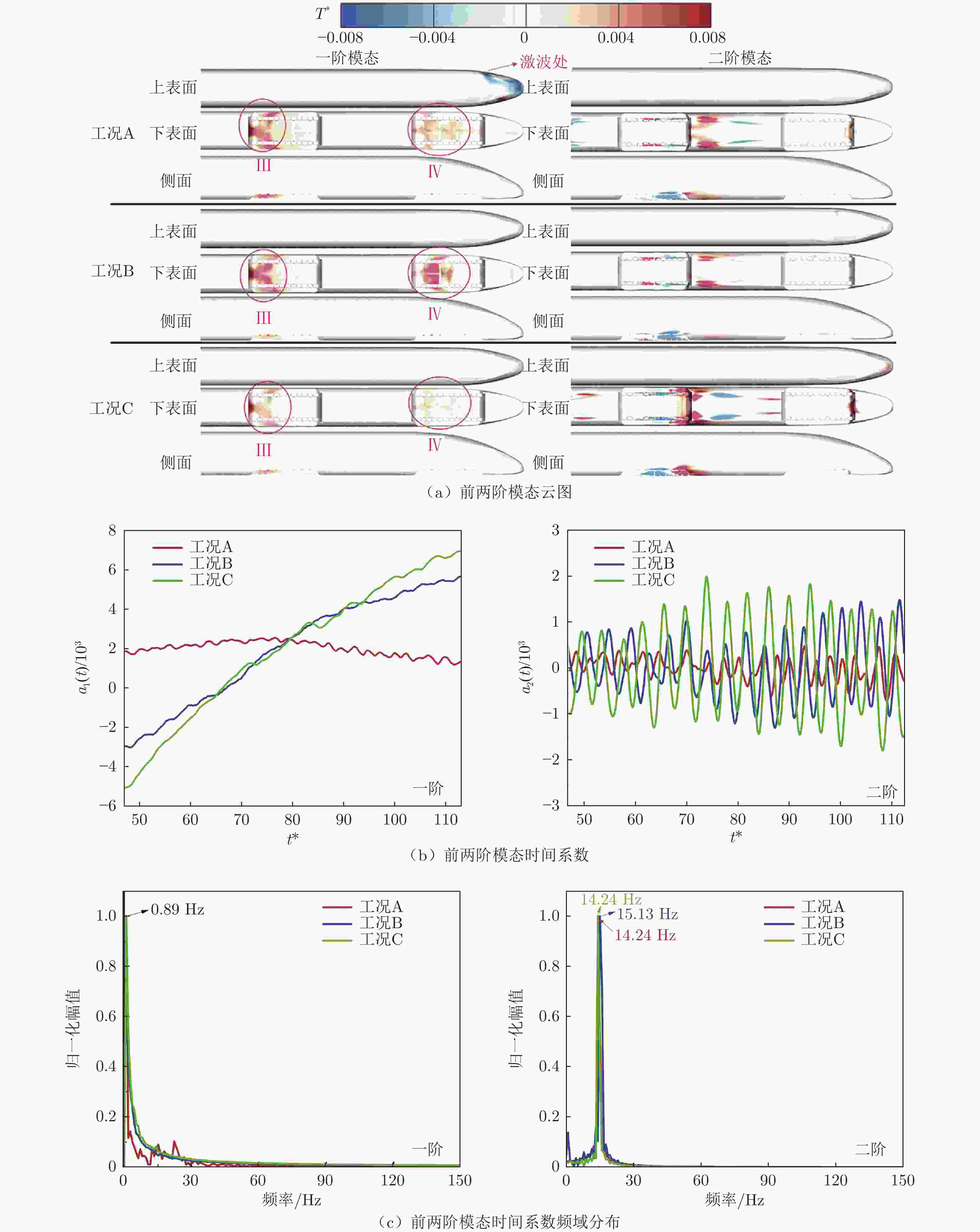

    图  20  尾车温度载荷前两阶POD模态

    Figure  20.  The first two POD modes of tail car temperature load

    表  1  计算工况

    Table  1.   Calculation case

    工况序号列车速度/(km·h−1阻塞比流动状态
    A8000.3雍塞
    B8000.2雍塞
    C8000.1非雍塞
    下载: 导出CSV

    表  2  用于网格独立性研究的3套网格分辨率

    Table  2.   Three sets of grid resolutions for grid independence studies

    网格方案最小网格尺寸y+棱柱层数网格总数
    0.0171Htr 1 22 1.42×107
    0.0132Htr 1 22 2.44×107
    0.0092Htr 1 26 5.01×107
    下载: 导出CSV

    表  3  列车表面监控点压力和温度最值及频域特性统计

    Table  3.   Statistics of pressure and temperature maxima and frequency domain characteristics at train surface monitoring points

    车厢监控点
    序号
    工况A工况B工况C
    压力系数温度压力系数温度压力系数温度
    最大值最小值主频
    /Hz
    最大值
    /K
    最小值
    /K
    主频
    /Hz
    最大值最小值主频
    /Hz
    最大值
    /K
    最小值
    /K
    主频
    /Hz
    最大值最小值主频
    /Hz
    最大值
    /K
    最小值
    /K
    主频
    /Hz
    头车 P1-1 1.98 1.92 0.89 330.38 328.81 0.89 1.57 1.49 0.89 321.64 320.09 0.89 1.29 1.15 0.89 316.30 313.43 0.89
    P1-2 0.42 0.17 0.89 318.99 314.42 0.89 0.09 −0.28 0.89 311.63 309.04 0.89 −0.17 −0.41 0.89 305.47 303.84 0.89
    P1-3 0.96 0.62 41.83 332.81 325.22 23.14 0.46 −0.01 38.27 321.92 314.32 38.27 0.03 −0.41 8.01 312.68 306.63 16.02
    P1-4 0.44 0.15 23.14 338.57 330.56 23.14 0.14 −0.29 38.27 321.92 316.03 38.27 −0.10 −0.42 67.64 319.53 311.49 67.64
    中间车 P2-1 −0.02 −0.17 14.24 314.78 311.56 14.24 −0.30 −0.49 0.89 306.97 305.06 0.89 −0.40 −0.48 0.89 303.46 301.34 0.89
    P2-2 0.17 0 14.24 362.44 348.61 0.89 −0.09 −0.40 13.35 342.82 335.50 0.89 −0.31 −0.47 14.24 340.51 332.77 0.89
    P2-3 −0.01 −0.16 14.24 382.14 354.89 0.89 −0.29 −0.52 0.89 364.70 347.24 0.89 −0.34 −0.48 14.24 370.86 346.76 0.89
    尾车 P3-1 −1.36 −2.23 0.89 363.99 288.83 13.35 −0.72 −1.29 0.89 331.24 308.18 3.56 −0.10 −0.29 4.45 328.60 308.59 0.89
    P3-2 −0.34 −0.52 14.24 312.42 307.73 14.24 −0.62 −0.71 13.35 305.54 301.72 0.89 −0.44 −0.52 18.69 303.69 301.15 0.89
    P3-3 −1.20 −1.27 0.89 354.89 295.41 0.89 −1.07 −1.25 0.89 358.57 293.60 0.89 −0.41 −0.48 0.89 420.87 358.76 0.89
    P3-4 −0.25 −0.40 14.24 389.36 348.36 0.89 −0.51 −0.67 15.13 379.84 338.82 0.89 −0.37 −0.51 14.24 390.29 348.19 0.89
    下载: 导出CSV
